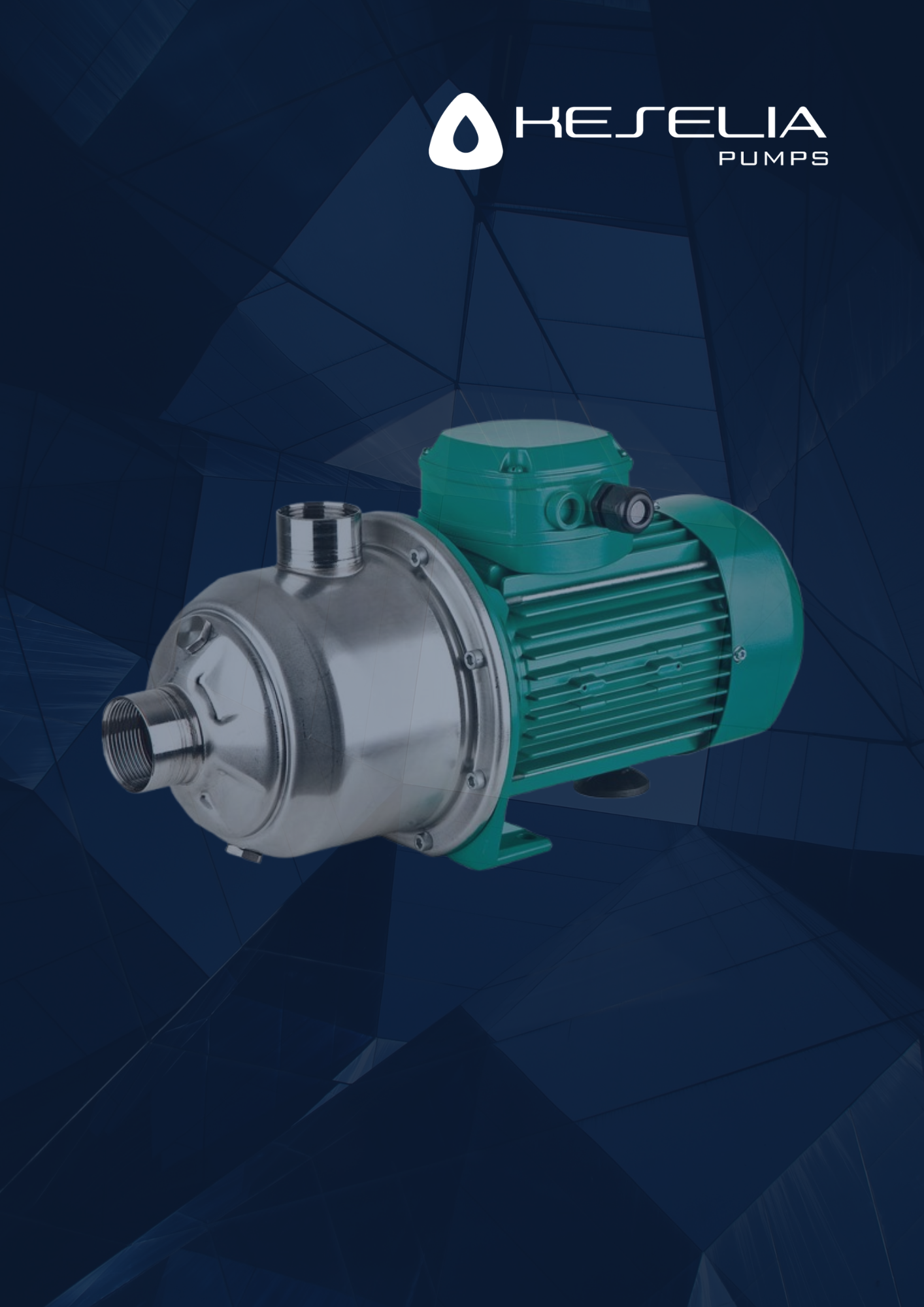

Horizontal Multistage Pump

Horizontal Multistage Pump

Key Features of Horizontal Multistage Pumps:

  1. Horizontal Design:

    • The pump is configured horizontally, making it suitable for applications where a horizontal layout is more practical or space-efficient.
  2. Multiple Stages:

    • Horizontal multistage pumps have two or more impellers arranged in series. Each stage contributes to the overall pressure lift, allowing the pump to handle higher heads.
  3. Efficiency:

    • These pumps are known for their efficiency in delivering fluids at elevated pressures. The multiple stages contribute to achieving the desired pressure output.
  4. Compact Footprint:

    • Although horizontal, these pumps are designed with a relatively compact footprint, making them suitable for installations where space is a consideration.
  5. Balanced Operation:

    • The design minimizes axial thrust, leading to smooth and balanced pump operation. This can contribute to longer pump life and reduced maintenance requirements.
  6. Versatility:

    • Horizontal multistage pumps are versatile and find applications in various industries, including water supply, industrial processes, irrigation, and more.
  7. Ease of Maintenance:

    • Many horizontal multistage pumps feature a design that facilitates easy maintenance, with features like a back pull-out design, allowing for inspection and repairs without disassembling the entire pump.
  8. Materials of Construction:

    • These pumps can be constructed using materials such as stainless steel, cast iron, or other corrosion-resistant materials, depending on the application and the nature of the fluids being pumped.

Common Applications:

  • Water Supply Systems:

    • Horizontal multistage pumps are often used in municipal water supply systems for pressurized water distribution.
  • Industrial Processes:

    • These pumps are suitable for a variety of industrial processes requiring high-pressure fluid transport.
  • Booster Systems:

    • Used in pressure boosting systems to increase water pressure in buildings, commercial facilities, or industrial plants.
  • Irrigation:

    • Horizontal multistage pumps are employed in agricultural irrigation systems, providing the necessary pressure for efficient water distribution.
  • Cooling Systems:

    • In HVAC systems and industrial cooling processes, these pumps circulate water at elevated pressures.

Horizontal multistage pumps are vital components in applications where the demand for high-pressure fluid transport is prevalent. Their efficiency, versatility, and reliability make them well-suited for a range of industrial and municipal settings.
